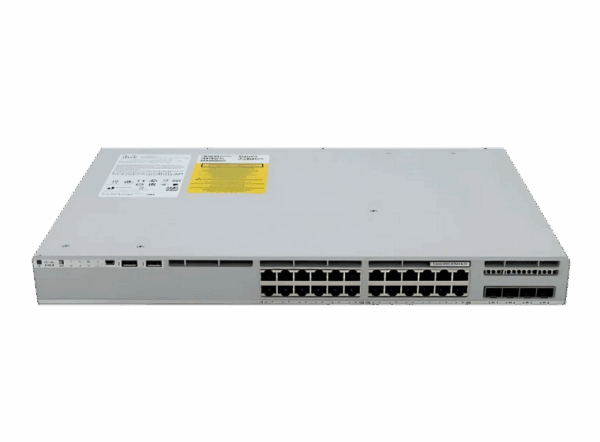

Cisco Catalyst 9300 Series Switches (C9300-24P-A)

Built to reimage connection, reinforce security, and redefine experience

Cisco Catalyst™ 9300 Series Switches are Cisco’s lead stackable enterprise access switching platform and, as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce, big or small. With Catalyst 9300 Series switches, you choose how you want to manage your network – on-premises, virtual, or from the cloud.

The many industry firsts of the Catalyst 9300 Series include:

• Up to 1 TB of stacking bandwidth: With Cisco StackWise-1T, Catalyst 9300 Series switches are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture.
• Flexible and dense uplink offerings with 100 Gigabit Ethernet (G), 40G, 25G, Multigigabit, 10G, and 1G modular uplinks.
• Mixed stacking with backward compatibility: Stack your Catalyst 9300X fiber switches with Catalyst 9300 and Catalyst 9300X Multigigabit switches, bringing stackable high-speed fiber to the access layer.
• Highest number of Multigigabit ports: With standalone and StackWise-1T, Catalyst 9300X models enable 48 Multigigabit ports in standalone mode and 448 Multigigabit ports with an 8-member stack.
• Highest 90W UPOE+ density: Enable your OT/IT needs with up to 48 ports of 90W Cisco UPOE+ in standalone mode or 384 ports of 90W UPOE+ with an 8-member stack.
• StackPower with backward compatibility: Enable power resiliency with higher power budgets in a mixed Catalyst 9300 and Catalyst 9300X stack.
• 100G IPsec in hardware: Built on the Cisco® Unified Access Data Plane (UADP) 2.0sec Application-Specific Integrated Circuit (ASIC), the Catalyst 9300X models come with 100G line-rate IPsec to enable various options for new edge connectivity.
• Secure tunnel connectivity: With the new edge, the Catalyst 9300X enables secure connections to secure internet gateways, cloud service providers, and site-to-site connectivity using IPsec tunnels with 256-bit Advanced Encryption Standard encryption (AES-256) and speeds up to 100G.
• Enhanced application hosting: With twice the capacity and additional RAM, Intel® QuickAssist Technology (QAT), and 2x 10G AppGig ports, the Catalyst 9300X models can host multiple Cisco Signed performance-savvy applications.
• ThousandEyes enabled: Enable end-to-end visualization of the path from campus/branch to clouds/data center with Cisco ThousandEyes® Network and Application Synthetics (included with Cisco DNA Advantage licenses).
• Cisco ASAc firewall enabled: Using application hosting, Cisco Adaptive Security Virtual Appliance (ASAc) and stateful inspection of traffic can be seamlessly added to existing networks without any additional hardware.
• Cloud management: Migrate Catalyst 9300 Series switches to the Cisco Meraki® dashboard to unlock centralized management and monitoring of devices while retaining advanced features like a cloud-hosted command-line interface terminal. Learn more.
• Investment protection: Catalyst 9300X redundant fans and power supplies, data stack, and StackPower cables are backward compatible with the Catalyst 9300 Series.

Product highlights

• Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models
• The C9300 are based on the Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
• C9300X models are based on UADP 2.5sec ASIC which adds line rate support for Crypto, including 100G IPSec
• x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering up to 240GB of storage with an option SSD drive) to host containers. C9300X models support 16GB of memory
• USB 2.0 slot to load system images and set configurations
• Up to 1 TBps of local stackable switching bandwidth
• Deeper buffer and higher scale model options for rich multi-media content delivery applications
• Flexible and dense uplink offerings with 1G, Multigigabit, 10G, 25G, 40G and 100G in the form of fixed or modular uplinks
• Easy transition from 10G to 25G with dual-rate optics
• Flexible downlink options with 1G Copper and Fiber as well as the densest Multigigabit links
• With a mix of Copper (1G up to 10G) and Fiber (1G up to 25G) supported in a single stack, multiple flexible deployment scenarios are enabled, including 2-Tier, 3-Tier and Hybrid architectures
• Leading PoE capabilities with up to 384 ports of PoE per stack, PoE+, and high density IEEE 802.3bt – 60W UPOE, and 90W Cisco UPOE®+
• Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy. Stackpower pools the power supplies across the stack to be used redundancy and supplemental power purposes
• Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 128,000 flows with select models
• IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
• Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
• Support for both static and dynamic NAT and Port Address Translation (PAT)
• IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio and video experience through improved time synchronization and QoS
• Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy making it suitable for distribution and synchronization of time and frequency over network
• Cisco IOS XE, a modern operating system for the C9300 with support for model-driven programmability including NETCONF, RESTCONF, YANG, on-box Python scripting, streaming telemetry, container-based application hosting, and patching for critical bug fixes. The OS also has built-in defenses to protect against runtime attacks
• End-to-end visualization of the path from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage and Premier licenses)
• SD-Access: Cisco Catalyst 9300 Series switches form the foundational building block for SD-Access, Cisco’s lead enterprise architecture:
  • Policy-based automation from edge to cloud
  • Simplified segmentation and micro-segmentation, with predictable performance and scalability
  • Automation through Cisco DNA Center
  • Policy handled through the Cisco Identity Services Engine (ISE)
  • Network assurance provided through the Cisco DNA Center
  • Faster launch of new business services and significantly improved issue resolution time
• Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
• Advanced security
  • Encrypted Traffic Analytics (ETA): You benefit from the power of machine learning to identify and take actions toward threats or anomalies in your network, including malware detection in encrypted traffic (without decryption) and distributed anomaly detection
  • Support for AES-256 with the powerful MACsec 256-bit encryption algorithm available on all models
  • Trustworthy solutions: Hardware anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play, to verify the identity of the hardware and software
